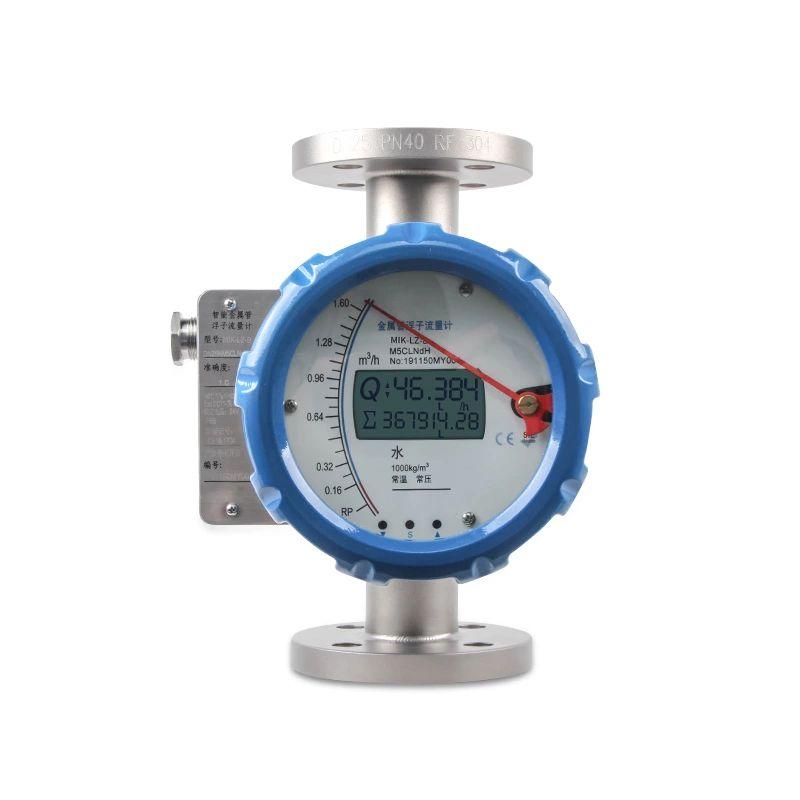

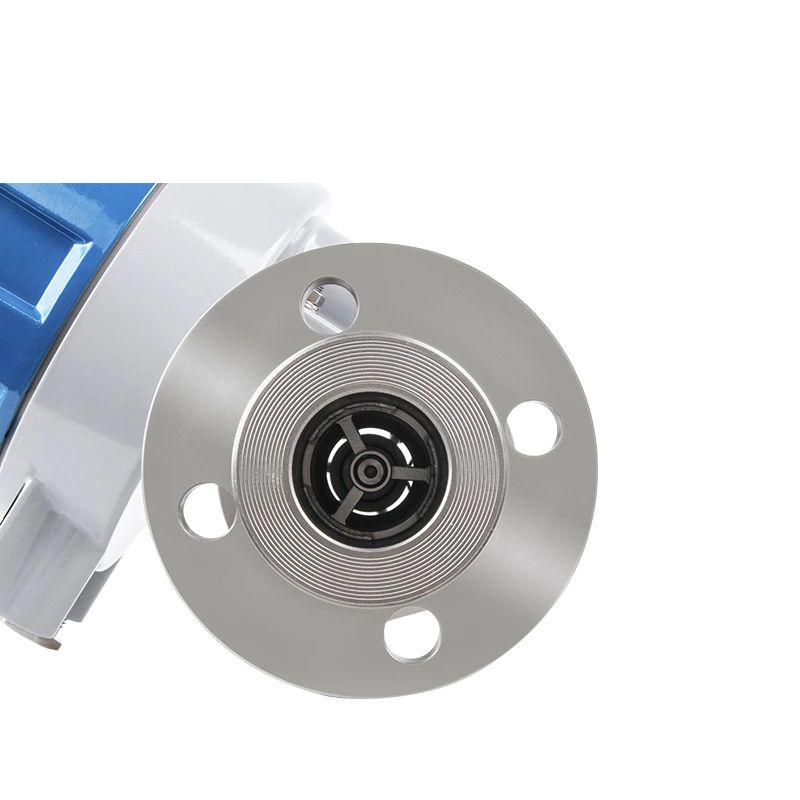

SUP-LZ Metal Tube Rotameter is a device that measures the volumetric flow rate of fluid in a closed tube. It belongs to a class of meters called variable-area flowmeters, which measure flow rate by allowing the cross-sectional area the fluid travels through to vary, causing a measurable effect.
Ingress protection: IP65
Range ratio: Standard: 10:1
Pressure: Standard: DN15~DN50≤4.0MPa, DN80~DN400≤1.6MPa
Connection: Flange, Clamp, Thread
| Product |
Metal Tube Rotameter |
| Model |
SUP-LZ |
| Range |
Water (20℃) (01~200000) L/h Air (20,0.1013MPa) (0.03~3000) m³/h |
| Range ratio |
Standard 10:1 Optional 20:1 |
| Accuracy |
Standard: 1.5% Optional:1% Gas: 1.5% |
| Pressure |
standard：DN15~DN50≤4.0MPa DN80~DN200≤1.6MPa Optioanl: DN15~DN50≤32MPa DN80~DN200≤16MPa
|
| Connection |
Flange, Clamp, Thread, Sanity thread |
| Medium temperature |
Standard: -20℃~120℃ PTFE 0℃~80℃ High temp: 120℃~450℃ low temp: -80℃~-20℃
|
| Environment temperature |
Remote type: -40℃~85℃ Pointer type/local alarm type -40℃~100℃
|
| Power supply |
Standard type: 24VDC two-wire system (4-20) mA (12VDC~32VDC) Alarm type: 24VDC multi-wire system (4-20) mA (12VDC~32VDC) AC type: (100~240) VAC 50Hz~60Hz Battery type: 3.6V@9AH lithium battery
|
| Load resistance |
RLmax: 600Ω |
| Alarm Output |
Upper and lower limit instantaneous flow alarm Local alarm type: upper limit, lower limit or upper and lower limit instantaneous flow alarm (Contact capacity 1A@30VDC) Upper limit and lower limit alarm hold range is a maximum of 60% of range, and the minimum interval between upper and lower limit
alarms is 10% of range
|
| Pulse output |
Cumulative pulse output is output of optocoupler signal isolation Darlington tube (internal 24VDC power supply, maximum current
8mA) |
| Ingress protection |
IP65 |
