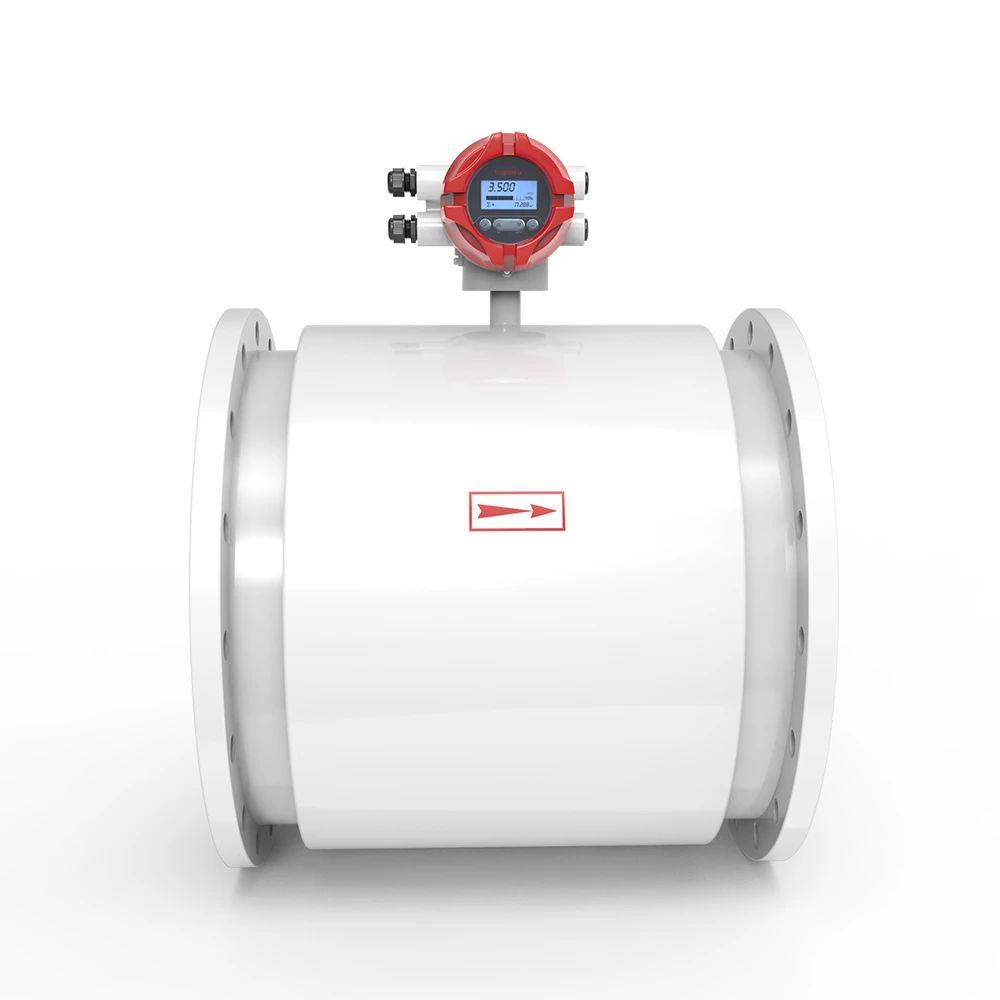

SUP-LDG Electromagnetic meters are a leading choice to deliver the performance and precision your applications require. These meters are applicable for all conductive liquids, such as water, acids, alkalis, slurries and many others. Typical applications are monitoring of liquids, filling, dosing and precise measurement in custody transfer.
Characteristics
Pipe diameter: DN15~DN1000
Accuracy: ±0.5%(Flow speed > 1m/s)
Theoretical value: Water: Min. 20μS/cm; Other liquid: Min. 5μS/cm
Recommended value: >30μS/cm
Turndown ratio: 1:100
Power supply: 100-240VAC,50/60Hz; 22-26VDC
Minimal Maintainice. Has no moving parts or flow obstructiions, which virtually eliminates maintenance and pressure drops
Specification
| Product |
Electromagnetic flow meter |
| Model |
SUP-LDG |
| Diameter nominal |
DN15~DN1200 |
| Nominal pressure |
DN15 - DN250, PN ≤1.6MPa |
| DN300 - DN1000, PN ≤1.0MPa |
| DN1200, PN ≤0.6 MPa |
| Higher pressure can be customized |
| Accuracy |
±0.5% F.S. (Flow speed > 1m/s); ±0.5% F.S.±2mm/s (Flow speed <1m/s) |
| Repetitiveness |
0.16% |
| Liner material |
Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA |
| Electrode material |
316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt |
| Medium temperature |
Neoprene: -10…+60℃ Polyurethane: -10…+60℃ PTFE/FEP: -10…+120℃ PFA: -10…+120℃ |
| Power supply |
85-245VAC,50/60Hz, 22VDC-26VDC |
| Structure type |
Compact type, Remote type |
| Ingress protection |
IP65, IP68(remote type only) |
| Product standard |
JB/T 9248-2015 |
